Máy hiện sóng DSO FNIRSI PRO 5MHz
Shop đang cập nhật thông tin dưới dạng tiếng việt ..............

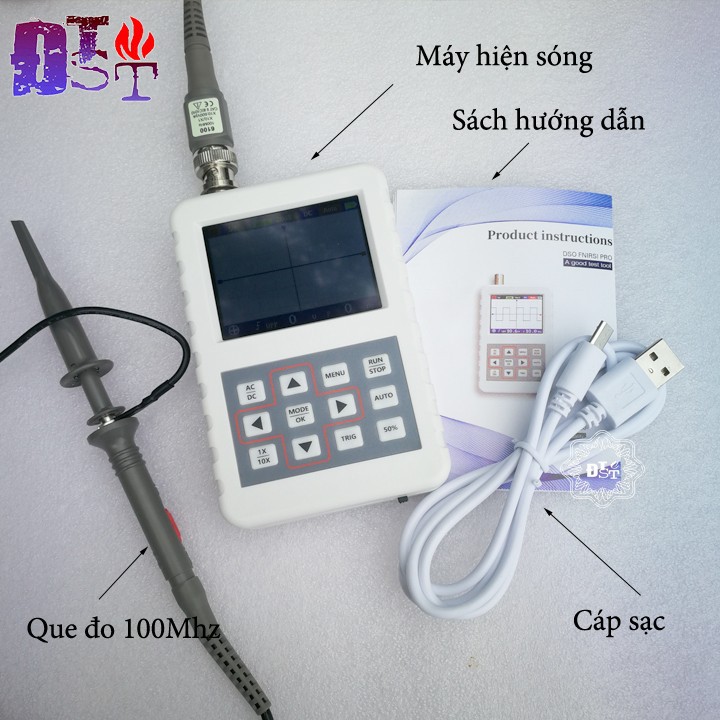

DSO PRO 2.4" Color Display Screen Handheld Portable Digital Mini Oscilloscope with 5MHz Bandwidth and 20M Sampling Rate

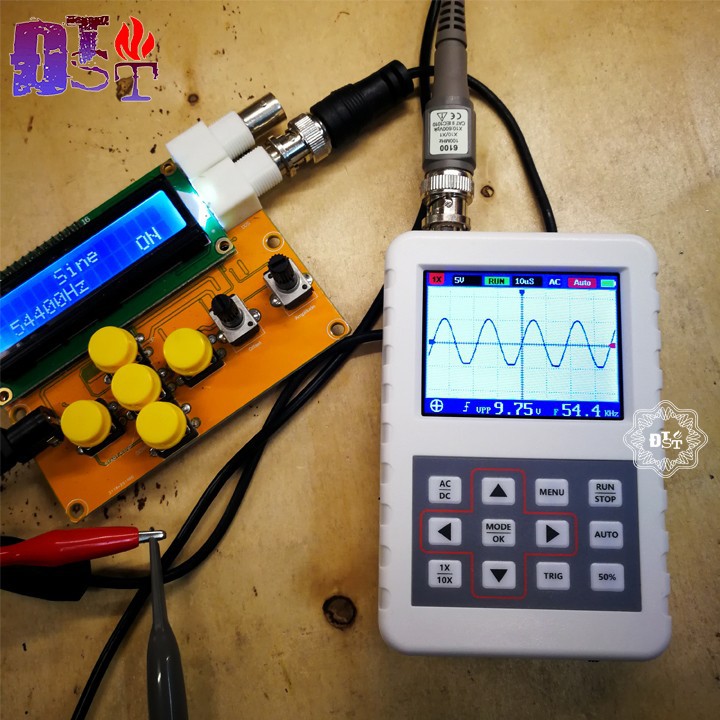

This is a pocket lightweight oscilloscope with 20M sampling rate and 5MHz bandwidth. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all perfect choices.
Features:
2.4 inch color display screen makes reading data faster and easier.
With 5MHz analog bandwidth and 20MS/s sampling rate.
Memory compression technology, waveform refresh screen does not flicker.
High measurement voltage range, 1X can measure 0-40V, 10X can measure 40-800V.
With complete triggering (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely.
Large time base scanning mode can monitor slow level changes.
Equipped with high efficiency one-button AUTO, the measured waveforms can be displayed without complicated adjustment.

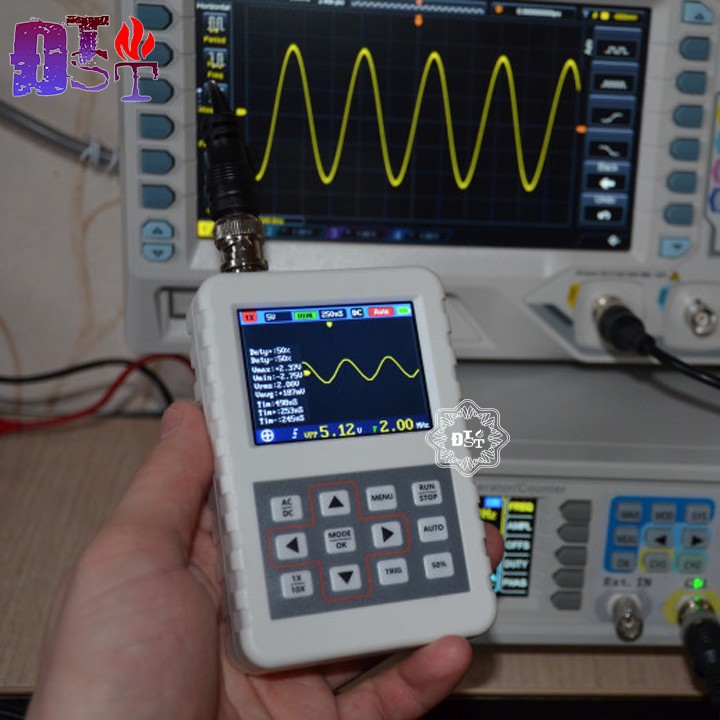

Up to 11 parameters measurement: VPP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time.
With afterglow display technology and fast waveform storage.
Built-in 16M storage space, maximum storage of 500 waveform pictures.
Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, flipping, deleting and other s.
At any time, the waveform display (pause ) is frozen.
Day mode and night mode can be changed according to their own preferences.
Compact structure, ultra-small size and easy to carry.
Specifications:
Main material: ABS
Color: white
Digital channel: 1
Analog bandwidth: 5MHz
Maximum real time sampling rate: 20MS/s
Vertical sensitivity: 50mV/div ~ 200V/div
Horizontal time base range: 50S/div ~ 250nS/div
Maximum input voltage: 40V (1X probe), 800V (10X probe)
Storage depth: 40KB
Input resistance: 1M
ADC accuracy: 8 bits
Coupling mode: AC/DC
Trigger mode: single, normal, automatic
Trigger edge: ascending/descending edge
External trigger voltage: 0–40V
Display: 2.4 inch, 320*240
Power supply: 1 * lithium battery, 1200mAh (included)
Item size: 120 * 70 * 24mm / 4.7 * 2.8 * 0.9in
Item weight: 120g / 4.2ounce
Package size: 160 * 100 * 95mm / 6.3 * 3.9 * 3.7in
Package weight: 195g / 6.9ounce
